“Ultraglide Max Light is a high-performance sliding window system that combines exceptional functionality with contemporary design. This system offers maximum flexibility and is suitable for both new construction and renovation projects.

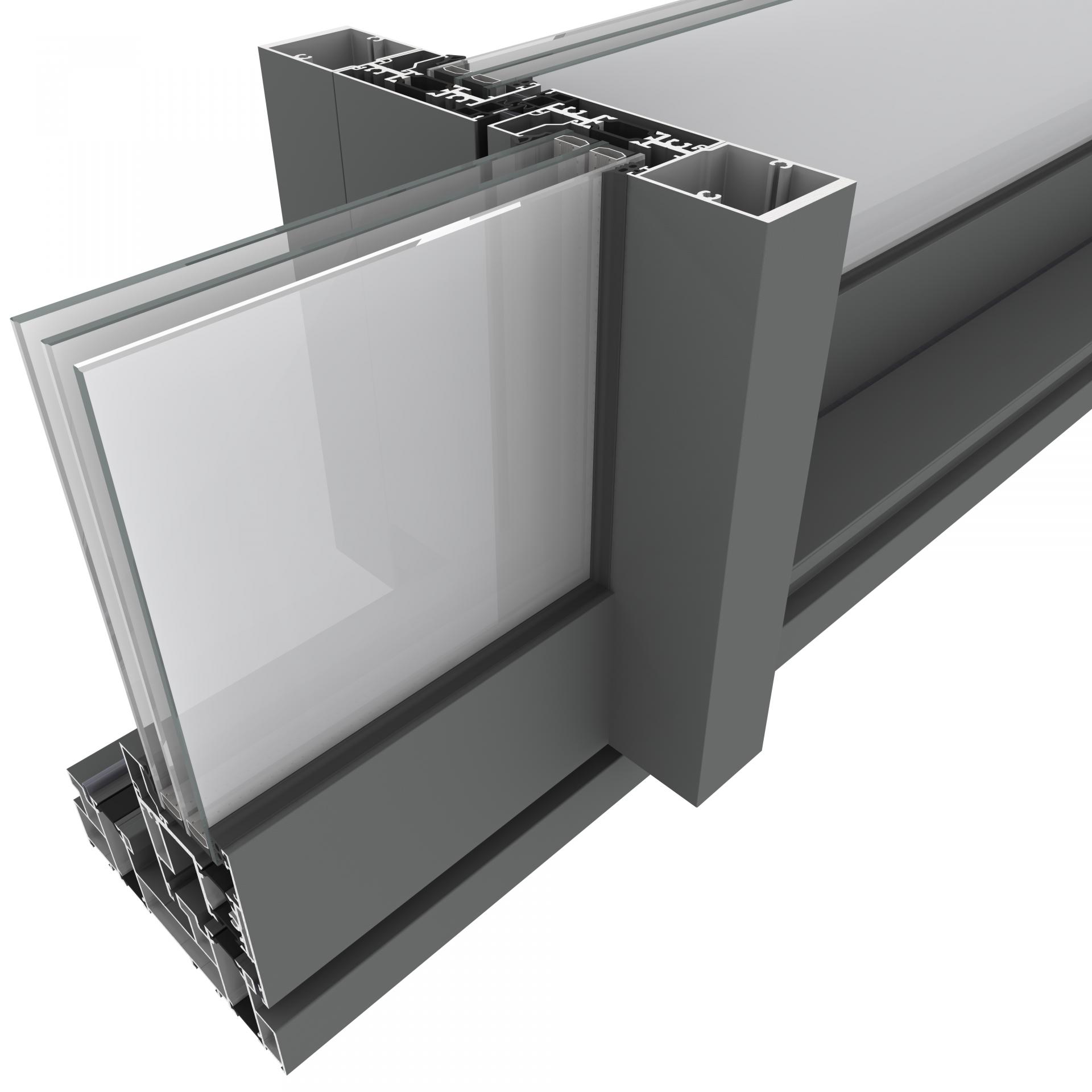

The Ultraglide Max Light features a sleek and slimline profile that maximizes the glass area, allowing for abundant natural light to fill the space and create a bright and inviting atmosphere. The system is highly customizable, accommodating various glazing thicknesses, vent heights, and insulation values, ensuring it can meet the specific requirements of any project.
With its excellent thermal insulation properties, the Ultraglide Max Light contributes to energy efficiency and helps create a comfortable living environment. The system provides optimal weather resistance, ensuring it remains watertight and airtight even in challenging conditions.
Security is a top priority, and the Ultraglide Max Light is equipped with robust locking mechanisms and optional security features for enhanced protection and peace of mind. The smooth and effortless sliding operation makes it easy to open and close the windows, providing convenience and comfort.
The Ultraglide Max Light is designed for versatility and can be used in various configurations, including slide and lift-slide models. It offers the option of a mono, duo, or triple rail system, providing flexibility in design and functionality.
Whether you are building a new home or renovating an existing space, the Ultraglide Max Light is an ideal choice for creating modern and stylish sliding windows that meet the highest standards of performance, aesthetics, and functionality.”
Please note that this is a generated description based on the limited information available. For more accurate and detailed information, it is recommended to refer to the official product documentation or contact the manufacturer directly.
|Maximum Sash Weight||440 kg|
|Outer Frame Glazing||8 mm - 72 mm|
|Sash Glazing||15 mm - 51 mm|
|Outer Frame Built-in Depth||153 - 176 - 239 mm|
|Sash Built-in Depth||67 mm|
|Visible Width Meeting Section||Up to 45 mm|
|3K3-Chamber System||Burglary resistance class RC2|
|Possible in Slide and Lift-Slide Model||Possible in mono, duo, or triple rail model|

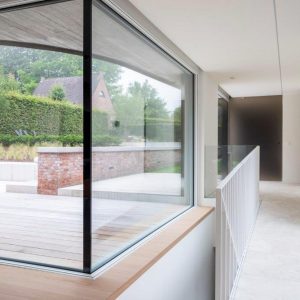

|Flat Threshold||Corner solution 90° glass/glass|
|Insulation Value U-Value||1.0 W/m²K (3850mm x 2550mm, UG = 0.6 W/M2K & PSI = 0.036 W/MK - profile UG810-UG521 (UGi+)|
|Watertightness||E750 (NBN EN 12208)|
|Airtightness||4 (NBN EN 12207)|
|Wind Resistance||C5 (NBN EN 12210)|
|Acoustic||Rw 40dB (-1,-4) / Rw 43dB (-2,-6)|
|Operating Force||1 (NBN EN 13115)|
Gellain is engaged in the production of PVC and ALU joinery from the highest quality materials. We make all kinds of windows, doors, entrance and garage, shutters, with manual and automatic systems.
