The VG500 Max Light is an enhanced version of the VG500 universal sliding window that offers exceptional performance and aesthetics. Designed by Aliplast, this window system combines advanced technology with a sleek design to meet the highest standards.

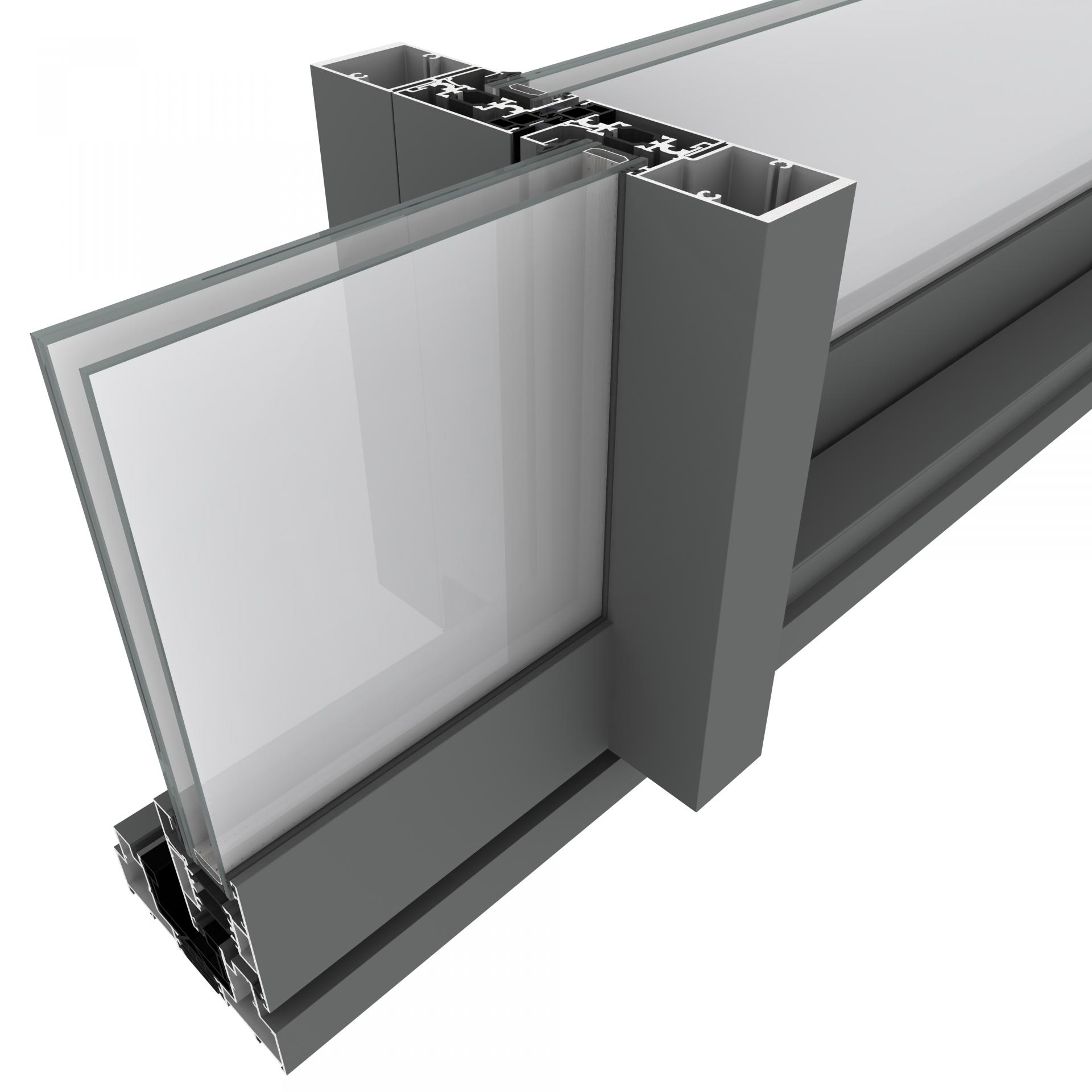

The VG500 Max Light features a slimline profile that maximizes the glass area, allowing for an abundance of natural light to enter the space. Its minimalist design provides a modern and elegant look, making it suitable for contemporary architectural styles.
This sliding window system is highly versatile and can be customized to meet specific project requirements. It accommodates various glass thicknesses, vent heights, and insulation values, ensuring optimal energy efficiency and comfort.
In addition to its functional benefits, the VG500 Max Light prioritizes security. It is equipped with robust locking mechanisms and can be further enhanced with optional security features for added peace of mind.
With its superior performance, aesthetic appeal, and flexibility, the VG500 Max Light is an excellent choice for both new construction and renovation projects. Whether you’re looking to enhance the visual appeal of your home or improve its energy efficiency, this window system delivers exceptional results.
|Enhanced Design||An enhanced version of the VG500 universal sliding window with exceptional performance and aesthetics.|
|Slimline Profile||Maximizes the glass area, allowing for ample natural light to enter the space. Provides a sleek and modern look.|
|Customizable||Can be tailored to specific project requirements, accommodating various glass thicknesses, vent heights, and insulation values.|
|Energy Efficient||Ensures optimal energy efficiency and comfort, contributing to a more sustainable living environment.|
|Security||Equipped with robust locking mechanisms and optional security features for enhanced protection.|
|Maximum Sash Weight||300 kg|
|Outer Frame Glazing||18 - 60 mm|
|Sash Glazing||6 - 48 mm|
|Outer Frame Built-in Depth||99/118 - 132/141 - 165/184 mm|
|Sash Built-in Depth||51 - 63 mm|
|Visible Width Meeting Section||Up to 45 mm|
|3K3-Chamber System||Possible in slide and lift-slide model|
|System Variations||Possible in mono, duo, or triple rail model|

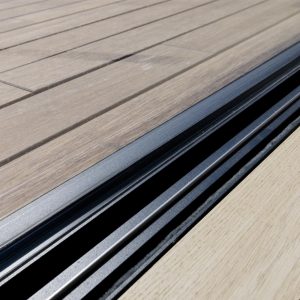

|Flat Threshold||Corner solution 90° glass/glass|
|Insulation Value U-Value||1.2 W/m²K (dim 3000x2100mm ; UG: 0.6W/m²K & PSI: 0.0036W/MK)|
|Watertightness||8A (NBN EN 12208)|
|Airtightness||4 (NBN EN 12207)|
|Wind Resistance||C3 (NBN EN 12210)|
|Impact Test||4 (NBN EN 13049)|
